Closures DIN28

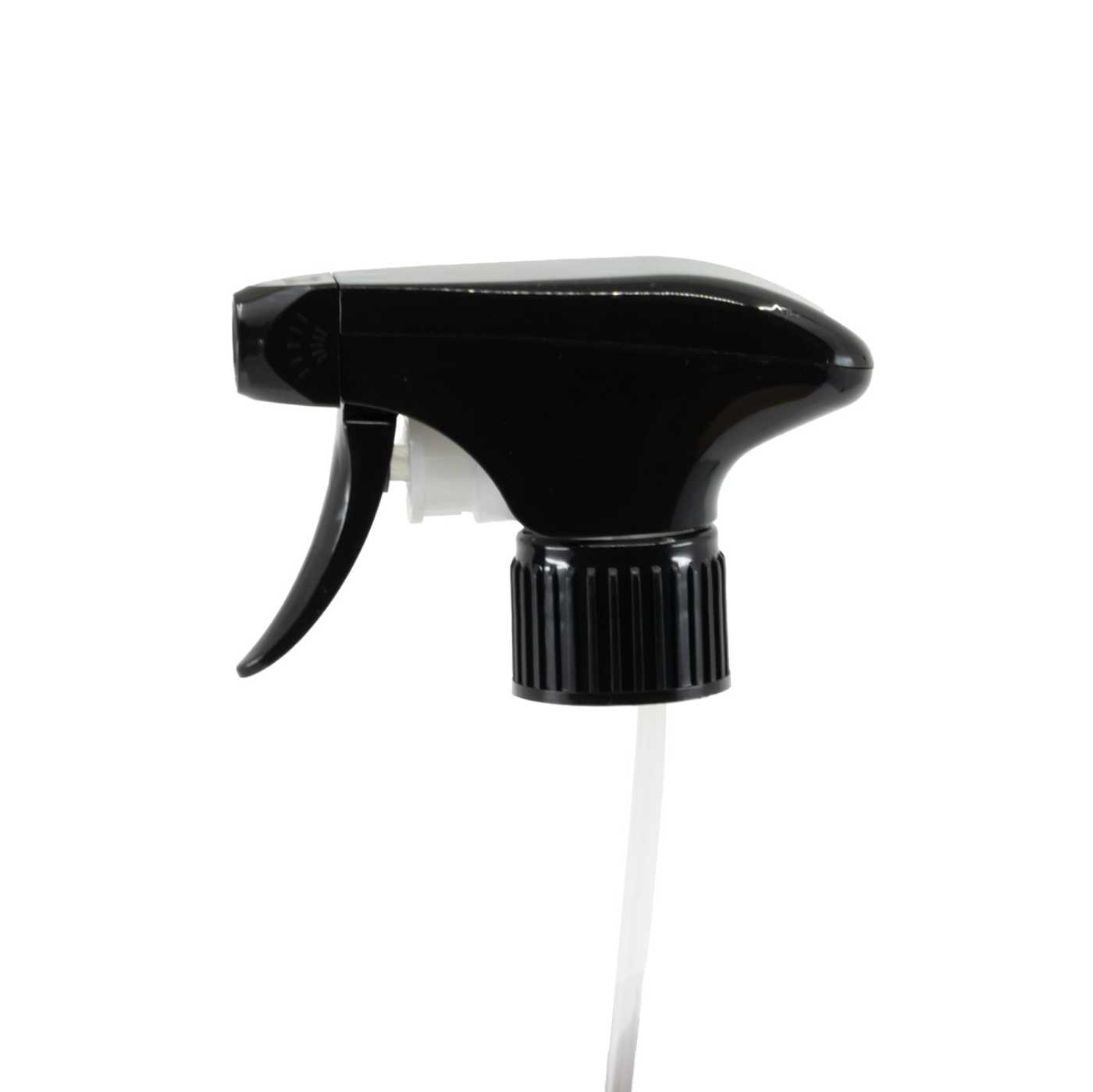

Black All-Plastic Trigger Sprayer, 28/410

The lever pump sprayer with a 28/410 thread is a dispensing closure for larger bottles, from which the contents are applied by spraying onto a surface or into a space. full description

AvailabilityPre-order
Product codeOVR28PC2
€0.88incl. VAT

Lowest price in the last 30 days: €0.88

Pre-orderThis variant is currently out of stock — your order will be a pre-order and delivery may take longer.
Volume pricing
1–199 pcs€0.88Your price
200–999 pcs€0.81−8 %
1000–4999 pcs€0.75−15 %
from 5000 pcs€0.66−25 %

Total for 1 pcs: €0.88

Product description

The lever pump sprayer with a 28/410 thread is a dispensing closure for larger bottles, from which the contents are applied by spraying onto a surface or into a space. It is suitable for water-based and thin solutions – household cleaning and disinfecting products, fabric and air fresheners, hydrosol body mists, ironing water, and plant sprays. The lever operated with the whole hand delivers more product at once than a small finger-pump sprayer, so it is used where spraying is frequent or over a larger area.

The sprayer is all-plastic, made of polypropylene (PP), in a black finish. The black colour conceals the contents of the dip tube and mechanism, so the finished product looks uniform even on a clear bottle. The all-plastic construction means the contents do not come into contact with metal parts. The packaging is also suitable for use with cosmetic products.


What the lever sprayer is suitable for

  • Cleaning and disinfecting preparations – solutions for surfaces, bathroom and kitchen, vinegar and alcohol-based cleaners. The sprayer is designed for these preparations and carries a technical-grade designation.
  • Cosmetic water-based preparations – body mists from hydrosols, refreshing sprays and hair waters with low viscosity, where a more generous output than a fine mist sprayer is desired.
  • Household and garden – ironing water, fabric fresheners, plant misting, water-based repellent sprays.
  • Larger containers – the 28/410 thread is commonly used on higher-volume bottles, for which small sprayers with a narrower neck are too weak.

How the sprayer works and what it handles

The lever pump sprayer draws the contents through a dip tube from the bottom of the bottle and, when the lever is pressed, pushes them through the nozzle. The volume of a single dose is listed in the parameters; normal use typically requires several presses per treatment of a surface.

It works best with liquids close to water viscosity. The thicker the preparation, the harder it is to draw up and atomise. Slightly thickened solutions may come out as a stream instead of a mist; thick gels and emulsions cannot be processed by the sprayer. Preparations with undissolved particles (herb residues, sediment, solid components) clog the nozzle, so filter them before filling.

The dip tube is supplied at full length to fit even tall bottles. Before fitting, cut it at an angle so that it ends just above the bottom of the bottle. The sprayer will then draw up to the very last of the contents, and the tube will not bend when screwed on.

Polypropylene tolerates water-based solutions, diluted alcohol, common surfactants and vinegar-based cleaners well. For preparations with a high content of essential oils, solvents, or more aggressive technical chemicals, we recommend verifying compatibility on a single unit. Monitor tightness, lever action and the condition of the seal after several weeks.


Bottle selection and filling

The sprayer fits bottles with a 28/410 neck. The neck type is listed in the parameters of each bottle, and you can find both bottles and ready-made bottle + sprayer combinations in the Handymade range. When making your own combination, we recommend verifying the tightness and behaviour of the assembly with your specific formulation.

The bottle is filled to its nominal volume, not to the brim. The nominal volume is the quantity the bottle is designed for under normal filling. The space above it up to the neck is reserved for the dip tube and sprayer mechanism and for expansion of the contents. An overfilled bottle will overflow when the sprayer is screwed on, or the contents will be pushed out through the tube.


Good to know

  • Before first use – rinse the sprayer with clean water; for cosmetic preparations, disinfect it with alcohol or isopropyl alcohol and allow it to dry completely. The first few presses after filling will be empty while the tube fills up.
  • Reuse – once the contents have been sprayed out, flush the sprayer by spraying clean water through it. When changing the contents (e.g. from a cleaner to a cosmetic preparation), a new unit is recommended.
  • Not for everything – not suitable for oils and oil serums, thick emulsions, or preparations with solid particles.
  • Labelling – the sprayer has no surface for a label; labelling belongs on the bottle. The black finish does not interfere with printing or labels.
  • Recycling – the polypropylene product with material code PP 5 should be placed with plastics after the contents have been sprayed out and the sprayer has been rinsed.

Alcohol and disinfectant preparations must be labelled after filling and the bottle must be kept out of reach of children. The lever pump sprayer is not a child-resistant closure.


Frequently asked questions

Which bottles does the 28/410 lever sprayer fit?
All bottles with a 28/410 neck, meaning an external thread diameter of 28 mm and a 410 thread profile. The neck type is listed in the parameters of each bottle. The sprayer does not fit bottles with a 24/410 or 18/410 neck; those require smaller sprayers.
Is the lever sprayer suitable for cosmetics?
Yes, the packaging material is suitable for use with cosmetic products according to the technical documentation, and a declaration of conformity is included with the product. The sprayer is also of technical grade, making it suitable for cleaning products as well. For cosmetic preparations, use a new, disinfected unit that has not previously contained any chemicals.
Can the lever sprayer be used to spray oil or a thick preparation?
No, the lever sprayer is designed for thin, water-based liquids. Oils are drawn up slowly, leave a greasy film in the nozzle and do not atomise into a mist. Thick emulsions, gels and thickened solutions either cannot be processed by the mechanism at all or only come out as a stream. For oily products, choose a pump or a dropper bottle.
Why does the sprayer not draw up to the bottom of the bottle?
The most common cause is an incorrectly cut dip tube. If it is too short, it ends high above the bottom and the remaining contents cannot be sprayed out. If it is too long, it bends when screwed on and suction stops. Cut the tube at an angle just above the bottom of the bottle you are using with the sprayer.
How is the lever sprayer cleaned and can it be reused?
Yes, the sprayer is designed for repeated use. Once the contents have been sprayed out, submerge the dip tube in clean water and spray several times to flush the nozzle and mechanism. For cosmetic preparations, then spray alcohol or isopropyl alcohol through it and allow it to dry. Dried residue from the preparation is the main cause of a clogged or seized mechanism.
Does the polypropylene sprayer withstand alcohol and vinegar-based cleaners?
Yes, polypropylene is stable at common concentrations of alcohol, vinegar and surfactants, which is why the lever sprayer is suitable for household cleaners and disinfectant solutions. We recommend testing on a single unit for preparations with a high proportion of essential oils, acetone or other solvents, which may over time affect the seal and lever action.

Parameters

Product colour
Black
Country of origin
European Union
Diameter
91,9 x 32,3 mm
Thread type
28/410
Height
63 mm
Product material
PPPlastic
Tube length
295 mm
Dose
1,3 ml

Product documentation

PPWRPackaging Declaration (PPWR)
Packaging compliance with the EU packaging regulation: category, PFAS, heavy metalsPDF ↓
PDSProduct Data Sheet
Product properties and usagePDF ↓
DrawingTechnical drawing
Packaging drawing with dimensionsPDF ↓
Download all (ZIP)

3 PDF files in one archive
